ElusiveStranger · Posted: Fri Oct 06, 2006 8:53 am Post subject: Pipe runs (Scooby)

Ladies & Gents,

As promised:

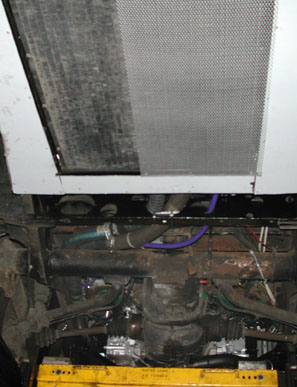

That's the Jag XJ40 rad. It is now fully protected.

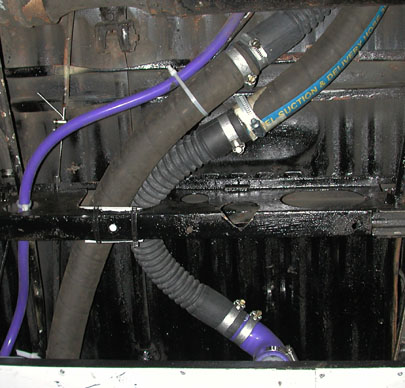

Pirtek 38mm ID hose just fits over the top of the torsion tube. The chassis might need a bit of a fettle Wink

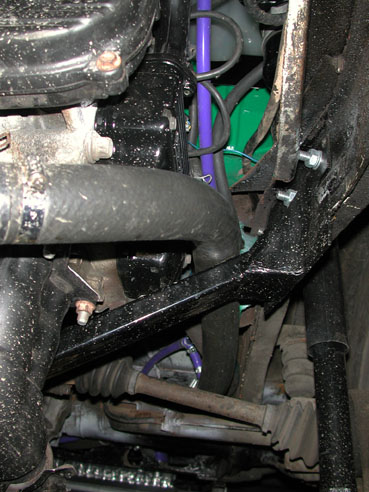

The 'snake skin' pipe is the return from the rad. I had a 10mm pipe TIG welded to a Rally Design hose ferrule. This connects via the blue hose (yes it is actually blue in real life) to: 1/ Rad expansion outlet 2/ Header tank.
The connector is situated at the highest point of the return line to allow easy air bleed.

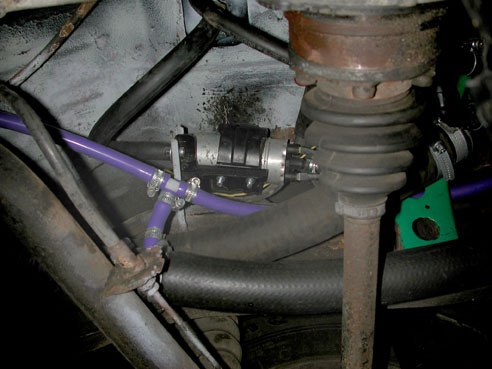

The fuel pump is from a Jag. I made a bracket to attach it to the Van's existing heat exchanger cable bracket.

That Gates flexi hose is great. That's the feed to the rad, 38-45 90° Samco hose connects the flexi to the rad. You can just see the joined throttle cable behind the blue hose. This will be replaced at a later date with a full length cable.

At the moment I havent conpleted boxing in the rad. I also have a front spoiler (to be modified at a later date). My fan is clicking on and off throughout journeys. Mind you I do them at 70. I'd better cure this prob before summertime Eeeek

I'd also better hurry and bung in some form of heating.
_________________
The advice you receive on here is worth the paper it's written on.
Your experiences are worth shed loads to others, including the f'ups - live and learn.
Wouldn't YOU rather learn by someone else's mistakes? So would they.

'78 Bay, 2 litre 091 box, EJ20 NA & the ashtray's on the 'right' side.
I don't lean forward for hills any more Grin

Bugger, missed out on "Live fast, die young"

jp · Posted: Wed Feb 15, 2012 4:26 pm Post subject:

Question for you Mr Balders...

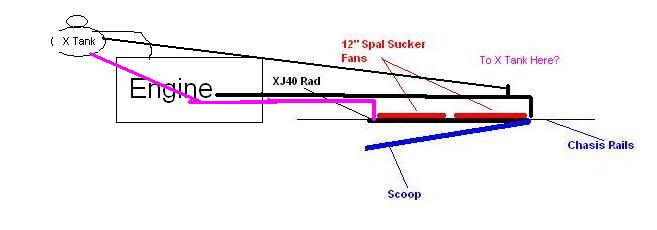

my set up is gonna be summut like this

I notice on your blue in real life pipe it tee's to header tank (frontera jobby?) and Rad Expansion outlet. What is the rad expansion outlet?

I was assuming that I would only need to connect my blue in real life pipe to the frontera header tank where indicated on my pic (To X-Tank Here bit)?

Thoughts please

jp · Posted: Wed Feb 15, 2012 4:58 pm Post subject:

Summut like this...

jp · Posted: Tue Mar 13, 2012 4:49 pm Post subject:

Kai · Posted: Wed Mar 14, 2012 12:17 pm Post subject:

Your first post your getting yourself confused I'd say.

But by the second post you've come round to the idea.

The amended drawing you posted is correct and is as I have got mine which is working perfectly an never gets hot.

I don't know why ES had a T in the real life pipe. My thoughts are either two rads ( which is false) or another bleed from a heater matrix.
